Shave feeder peak demand before simple-cycle gas peakers & rolling load-shed relays trip.

Stagnant high-pressure heat dome pushes afternoon ambient temperatures to 104°F while thermal generation derates and evening AC load spikes across ERCOT.

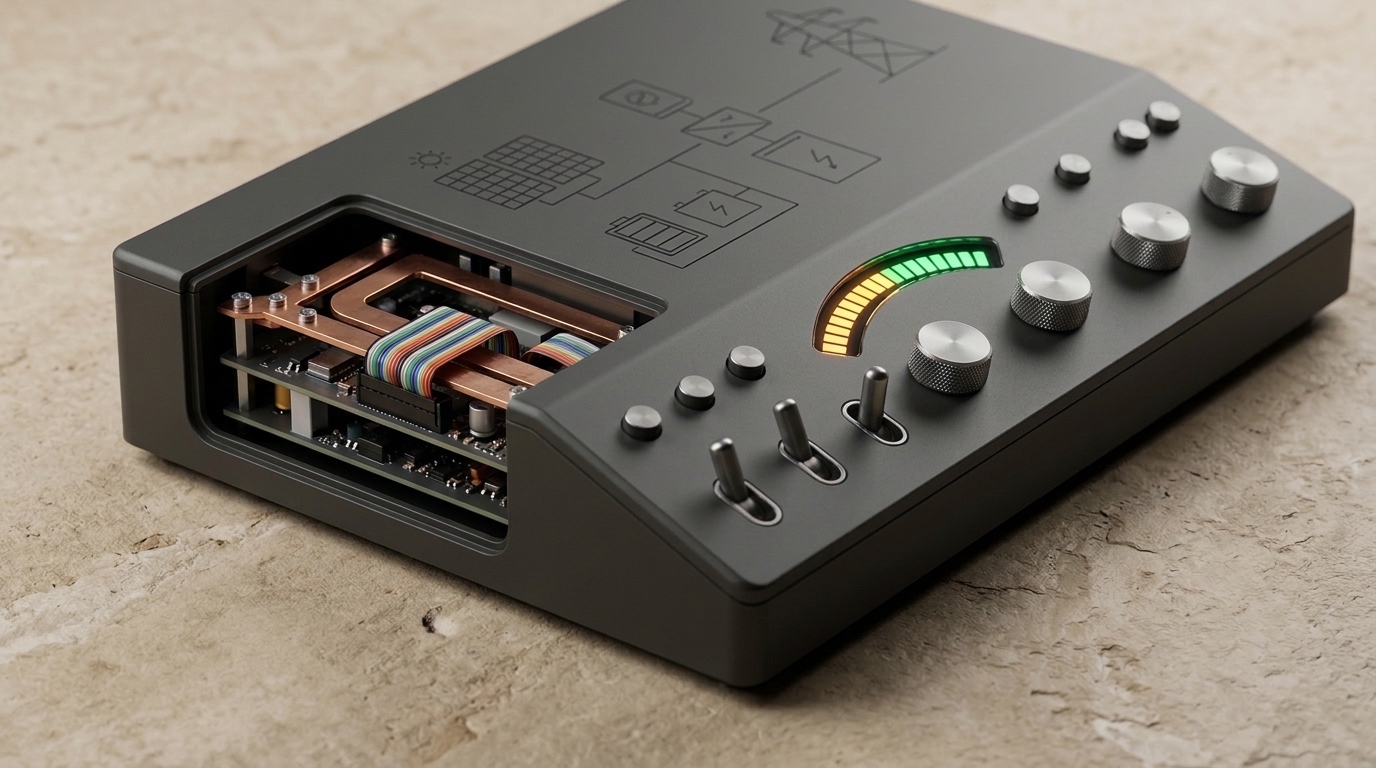

Dieter Rams inspired GridPulse residential sub-panel load controller showing exposed copper bus bars, mechanical breaker toggles, and an LED strain arc gauge on limestone — FIG 01 // 240V SPLIT-PHASE COPPER BUS & SOLID-STATE PEAK-SHIFT RELAY MODULE CT CLAMP ACCURACY: +/-0.5%

Pre-cool thermal mass between 13:00 and 15:30, defer 40A EV charging to 01:00 wind surplus, and lock out resistive dryer drums during 16:00 - 20:00.

Peak Window Demand Reduction

0.0% shaved

-0.00 kW

19.65 kW baseline to 19.65 kW active

Time-of-Use Bill Arbitrage

$0.00

$0.00 / 30d

Marginal Peaker CO2 Avoided

0.00 kg

0.0 kg / 30d

Feeder Strain Index

91 / 100

CRITICAL: Critical Feeder Overload Risk (Baseline 91)

24-Hour Dual-Trace Demand Oscilloscope

Compares unshifted household peak profile (vermilion dashed) against active breaker and relay schedule (emerald solid).

Baseline Peak Curve Active Shifted Bus ERCOT Alert Window

Inspect Interval Cursor: 18:00 ERCOT PEAK INTERVAL

Baseline 19.65 kW

Active Bus 19.65 kW

Interval Delta -0.00 kW

Interval Tariff $0.32/kWh

13.5 kWh LFP Outage Reserve

High Drain Warning (<8h Backup)

Simulates lithium iron phosphate (LFP) microgrid endurance (94% inverter efficiency, 10% reserve floor) under current breaker states.

Estimated Island Runtime 2h 20m

10.15 kWh usable 4.35 kW net drain

Battery State of Charge (SoC) 90% SoC

Critical Bus Rule: Shedding 240V heating and EV circuits extends 13.5 kWh LFP runtime from ~2.5 hours to over 30 hours for medical CPAP, refrigeration, and gateway comms.

8-Circuit Sub-Panel Load Directory

Throw individual 240V / 120V breakers or arm automated time-of-use peak-shift relays to clear the ERCOT alert window.

8 Closed / 0 Shed / 0 Shifted
